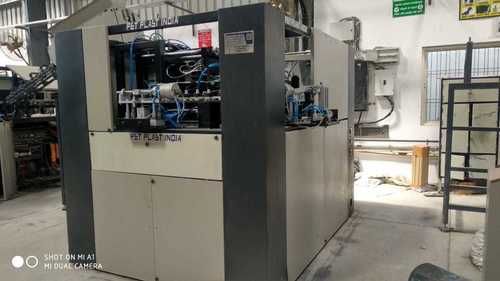

Fully Automatic 2 Cavity Pet Blow Molding machine

Fully Automatic 2 Cavity Pet Blow Molding machine
Fully Automatic 2 Cavity Pet Blow Molding machine
Send Inquiry
Product Code : A-2CB2000
Brand Name : PET PLAST
Product Specifications
  • Product Type
  • Plastic Machiniry
  • General Use
  • PET bottle Manufecturing
  • Material
  • PET
  • Capacity
  • 2500 BPH* Liter (L)
  • Weight (kg)
  • 2000 Kilograms (kg)
  • Type
  • Beverage Bottles, Cosmetic Bottles, Oil Bottles, Pharmaceutical Bottles, Water Bottles, Carbonated Drink Bottles, Juice Bottles
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Blow Moulding Type
  • Stretch Blow Moulding
  • Cavity Quantity
  • 2 Pieces
  • Clamping Force
  • 16 Newton (N)
  • Clamping Stroke
  • 140 mm
  • Mould Stroke
  • 380 mm
  • Stretching Stroke
  • 380mm
  • Low Pressure Air Displacement
  • 10 Bar
  • High Pressure Air Displacement
  • 30 Bar
  • Power
  • 25 KW Statampere (sA)
  • Infrared Heater
  • Yes
  • Color
  • Blue and Orange
Product Description

With our well-off industry experience, we are affianced in offering our clients a broad range of Automatic PET Bottle Blow Moulding Machine. . In order to meet the set international quality standards, the complete range is severely tested on diverse defined parameters. Offered Automatic PET Bottle Blow Moulding Machine is developed from the highest quality raw material by our skilled professionals at our hi-tech manufacturing unit. Used for manufacturing jars, bottles & cans, our machines are tough in quality.

Features:

  • Stuedy structure
  • Long lasting performance
  • Easy to operate
  • Maintenance free service
  • High Accuracy Precision work ensures smooth operations.
  • Touch screen makes operatizing user friendly.
  • Frequency conversion, constant temperature and layered heating system ensure uniform heating hence minimizes rejections.
  • Provision of Auto Fault Detection.
  • Compact modular design ensures ease to operate and low maintenance cost.
  • Auto temperature controller ensures minimum rejection.
  • Suitable for Liquor/Packaged/Drinking Water/Juice/ Edible oil/Soft drink/Cosmetics/Pharma Industries etc.



Technical Specifications

Model

Unit

A-2CB2000

No. of Cavities

Pcs

2 Cavity

Volume Range

Ml

2000

Theoretical Output*

Bph

2500*

Neck Size Range

Bph

10-32

Max. Product Diameter

mm

20-90

Max. Product Height

mm

50-350

Operation

Fully Pneumatic Servo Technology

Fully Pneumatic Servo Technology

Clamping Force

Ton

16

Clamping Type

Toggle System

Toggle System

Max Mold Thickness

mm

200




Trade Information
  • FOB Port
  • Delhi
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 4-5 Per Week
  • Delivery Time
  • 3-4 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Domestic Market
  • All India
